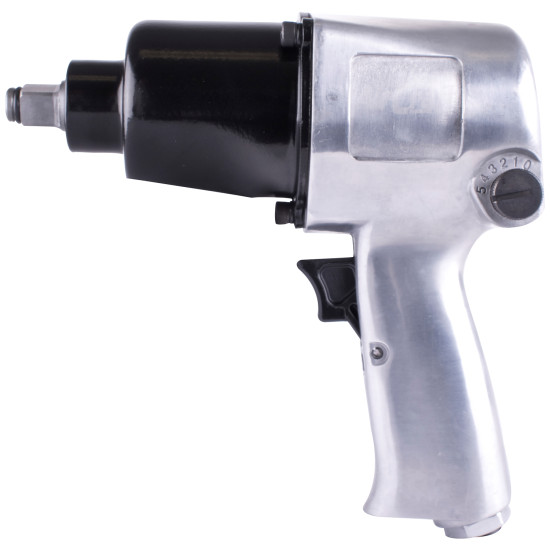

Impact wrench 1/2' Drive
The impact wrench is used to deliver high torque to either loosen or tighten projects in many industries from automotive repair to heavy equipment maintenance.
In operation, a twin hammer is accelerated by the motor to make contact with the 1/2' output shaft to deliver high impact torque as much as 567 Newton-Meter.
A compressor is required with an air flow delivery of at least 291 l/min at 6.3 Bar to make use of the impact wrench.
Make sure that an in-line lubricator is fitted with pneumatic oil (AT OIL).
Use 1/2' impact sockets
|consider safety for your health and the people around you|
General safety suggestions:
It is advisable to always have the following items nearby and in a good condition
|Working pressure||6.3 Bar|
|Maximum torque||567 Nm|
|Free speed||7500 rpm|
|Average air consumption||291 l/min|
|Suggested minimum compressor HP||3 HP|
