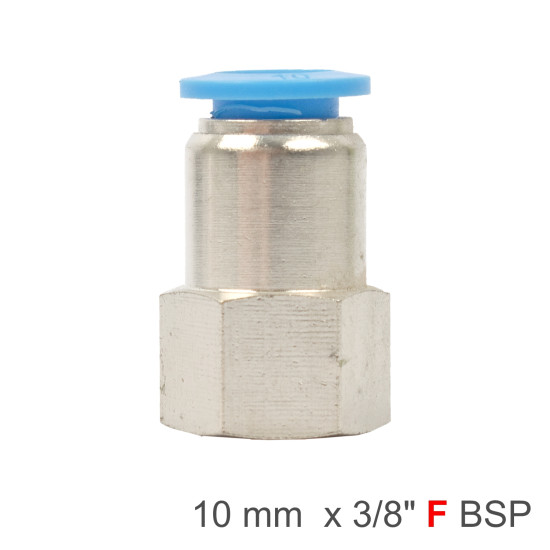

Pu Hose Fitting Straight Stud 10mm-3/8 F

Extra Information

• Designed for 10mm outside diameter PU/nylon pneumatic tubing.
• Female thread is 3/8" BSP (fits a matching 3/8" BSP male port).
• For best sealing and grip, cut tubing square and clean and push fully home until it bottoms out.

Features

• Push-in connection for 10mm tube Quick tube insertion with a release collar for easy tube removal.
• 3/8" BSP female thread Couples directly onto 3/8" BSP male ports commonly used on manifolds and pneumatic components.
• Straight fitting profile Keeps hose routing direct and helps reduce kinks on tighter runs.
• Durable metal body Built for workshop use and repeat servicing.

Benefits

• Quick installs and changes: Push-fit tubing reduces downtime during maintenance and upgrades.
• Neater air line routing: Cleaner hose runs improve access and troubleshooting.
• Reliable sealing: Secure tube grip helps reduce leaks and accidental pull-out.

Safety

• Wear eye, ear and dust protection when working around compressed air systems.
• Depressurise the air line before installing, removing, or releasing tubing from the fitting.
• Check for leaks after installation using soapy water and re-seat connections if bubbles appear.
• Do not use damaged tubing—replace split, kinked, or worn tube to prevent blow-off under pressure.

Specifications
